CNC Lead Screw Rotating Nut Ballscrew Linear Guide Ground Rolled Ball Screw

CNC Lead Screw Rotating Nut Ballscrew Linear Guide Ground Rolled Ball Screw

Package Size 1000.00cm * 150.00cm * 150.00cm Package Gross Weight 5.000kg Ball Screw with Nut details Ball screw is made;
Basic Info.
Model NO. SFU1605
Nut Number Single
Rows Number 4-Row
Nut Type Circulator
Type Outer Loop
Core Components Bearing, Bearing Steel Balls, Screw, Screw Nut
Structure Ball Screw+Nut
Manufacturing Process Rolled Thread/Ground Thread
Performance High Running Performance
Feature High Reliability/Smooth Operation/High Rigidity
Thread Direction Right
Length 100-6000mm(Custmized)
Material CF53 Carbon Steel, Bearing Steel
Grade C7.C5.C3
Diameter of Ball Screw 16mm
Lead 5mm
Model No Sfu1605-4 Ball Screw
Transport Package Wooden Box
Specification SFU1605
Trademark WF
Origin Jiangsu, China (Mainland)
HS Code 8483401090
Production Capacity 10000PCS/Month
Packaging & Delivery
Package Size 1000.00cm * 150.00cm * 150.00cm Package Gross Weight 5.000kg
Product Description
Ball Screw with Nut details
Ball screw is made of screw, nut and ball. The function is to turn the rotary motion into liner motion, which is a further extension and development of ball screw. The significance of this development is to move into a rolling bearing from sliding action; With little friction, ball screws are widely used in various industrial equipment and precision instruments.
WHAT CAN WE SUPPLY?
-1.We have TBI or THK sizes for your selection.
Our ball screws and nuts are the same sizes as TBI or THK ,they can be interchanged with TBI or THK.
TBI sizes have enough inventory in stock.
THK sizes are produced on request.
-2.We are able to machine the two end sides of ball screws according to your requirements.-3.We have full range of products what can be matched with ball screws.
We are able to match for you completely, including Machined Ball screw, Ball screw Nut, Nut housing/Nut Bracket, Shaft Coupler, End support unit.
-4.We provide many different series of ball screws and screw nuts, like SFU,SFK,SFS,SFI,SFY,SFA,DFU,DFI series and so on.
SFU Ball Screw Nut Model No.(plastic deflector or metal deflector )
SFU1204-3;SFU1605-3;SFU1605-4; SFU1610-2; SFU2005-3;SFU2005-4;SFU2505-3;SFU2505-4;SFU2510-4;SFU3205-3; SFU3205-4;SFU4005-4;SFU4010-4; SFU5010-4;SFU6310-4;SFU8010-4
SFK Ball Screw Model No.
SFK0601;SFK0801;SFK0802;SFK082.5;SFK1002;SFK1004;SFK1202;SFK1402
SFS Ball Screw Model No.
SFS1205;SFS1210;SFS1605;SFS1610;SFS1616;SFS1620;SFS2010;SFS2510;SFS2525;SFS3210;SFS4010
SFI Ball Screw Model No.
SFI1605;SFI1610;SFI2005;SFI2505;SFI2510;SFI3205;SFI3210;SFI4005;SFI4010
SFE Ball Screw Model No.
SFE1616;SFE2020;SFE2525;SFE3232;SFE4040
SFY Ball Screw Model No.
SFY1616;SFY2020;SFY2525;SFY3232;SFY4040
SFA Ball Screw Model No.
SFA1610;SFA1620;SFA2010;SFA2510;SFA2525
Ball Screw End Supports Model No.
BK10 BF10, BK12 BF12, BK15 BF15, BK17 BF17, BK20 BF20, BK25 BF25,BK30 BF30, BK35 BF35, BK40 BF40
EK06 EF06, EK08 EF08, EK10 EF10, EK12 EF12, EK15 EF15, EK20 EF20; EK25 EF25
FK06 FF6, FK08 FF08,FK10 FF10, FK12 FF12, FK15 FF15, FK20 FF20, FK25 FF25, FK30 FF30
Ball Screw Nut Housings Model No. (Aluminium or Iron)
DSG12H(1204),DSG16H(1605/1610), DSG20H(2005/2010), DSG25H(2505/2510), DSG32H(3205/3210), DSG40H(4005/4010),DSG50H(5005/5010)

Each series has its own characteristics. The following table list the differences in appearance and characteristics for your reference.

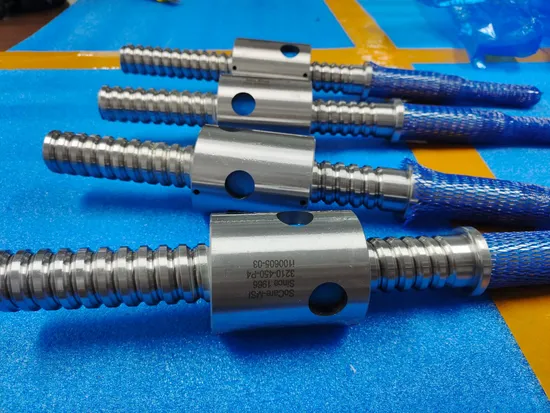

CNC Lead Screw Rotating Nut Ballscrew Linear Guide Ground Rolled Ball Screw

Rolled Ball Screw Application:1. Engraving machines; 2. High speed CNC machinery;4. Auto-machinery. 3. Semi-Conductor equipment;5. Machine tools; 6. Industrial Machinery;7. Printing machine; 8. Paper-processing machine;9. Textiles machine; 10. Electronic machinery;11. Transport machinery; 12. Robot etc.Rolled ball screws can not only be used in above general machinery, but also in many advanced industries. Rolled ball screw with a motor assembles electrical-mechanical actuator, which is more eco-friendly than hydraulic pump system. Nowadays it's applied to electric vehicles, solar power plants, railway devices and many medical and leisure equipments.

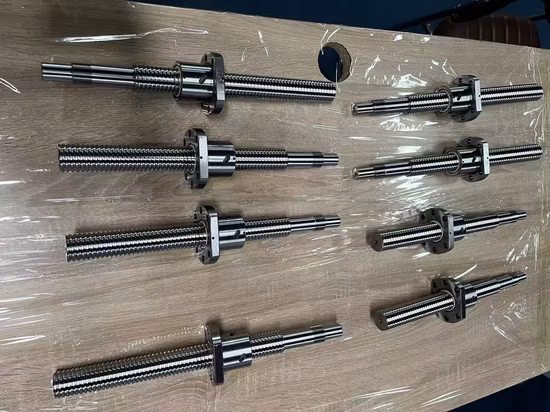

CNC Lead Screw Rotating Nut Ballscrew Linear Guide Ground Rolled Ball Screw

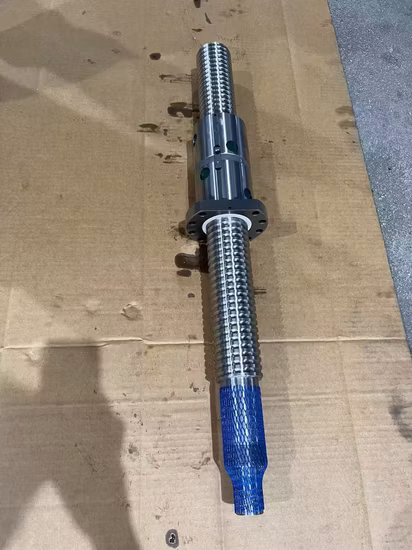

CNC Lead Screw Rotating Nut Ballscrew Linear Guide Ground Rolled Ball Screw

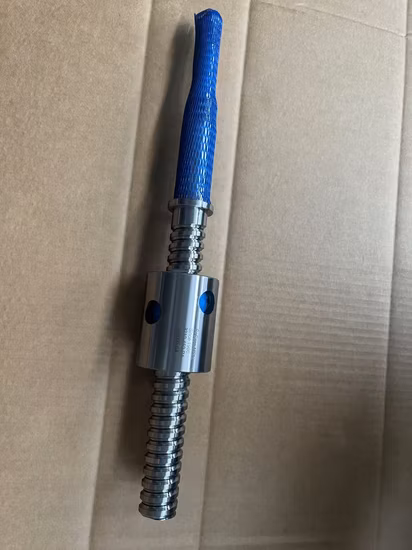

CNC Lead Screw Rotating Nut Ballscrew Linear Guide Ground Rolled Ball Screw

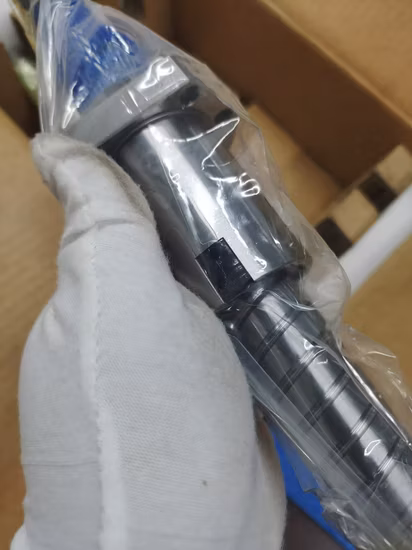

CNC Lead Screw Rotating Nut Ballscrew Linear Guide Ground Rolled Ball Screw

Kindly pls contact me if you have any question!!!!!!!!!!!!!!!!!!!!!!
