Small Portable Diesel Crawler Mobile Hydraulic Rotary Mine Rock Core DTH Diamond Bit Hammer Trailer Deep Borehole Ground Water Well Drill Machine Drilling Rig

Small Portable Diesel Crawler Mobile Hydraulic Rotary Mine Rock Core DTH Diamond Bit Hammer Trailer Deep Borehole Ground Water Well Drill Machine Drilling Rig

Overview Package Size 580.00cm * 210.00cm * 210.00cm Package Gross Weight 5500.000kg Product Description FYX series rota;
Overview
Basic Info.
Model NO. FYX180
Condition New
Motor AC Motor
Drill Hole Diameter 250-300mm
Drill Hole Depth 150-200m
Bit Type Diamond Bit
Drilling Way Rotary
Type Crawler
Using Air Pressure 1.7-2.5MPa
Diesel Engine Quanchai Brand
One Time Advance Length 3.3m
Walking Speed 2.5km/H
Drill Pipe Diameter 76, 89mm
Climbing Angle 30 Degree
Fast Feeding Speed 40m/Min
Rapid Rise Speed 20m/Min
Air Consumption 17-31m3/Min
Swing Torque 3200-4600n.M
Drill Pipe Length 1.5, 2.0, 3.0m
Host Power 55kw
Total Weight 4.5t
Transport Package Export Standard Seaworthy Packing
Specification 3950x1600x2250mm
Trademark Duobo
Origin Shandong, China
HS Code 843041
Production Capacity 1000 Sets/Year
Packaging & Delivery
Package Size 580.00cm * 210.00cm * 210.00cm Package Gross Weight 5500.000kg
Product Description

Product Description

FYX series rotary full hydraulic control water well drilling rig is multifunctional, it can be used with an air compressor, and mud pump, even we can only use the dry hydraulic drilling method.Portable drilling rigs are not only designed for water, they can also be used in all conditions depending on the hole forming purpose.This series of water well drilling rigs has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economical and durability, and low failure rate. Once launched, it has been recognized by the market and has been widely used in mining engineering construction, civil drilling, geothermal drilling, and other fields.Widely used in industrial and agricultural water conservancy projects, test wells, and another exploration drilling. In particular, geothermal heating drilling can also meet various projects of engineering foundation reinforcement, loose gravel drilling, and rock formation connection.Our drilling rigs are more efficient, have lower failure rates, are more economical and durable, and have comprehensive cost-effectiveness.

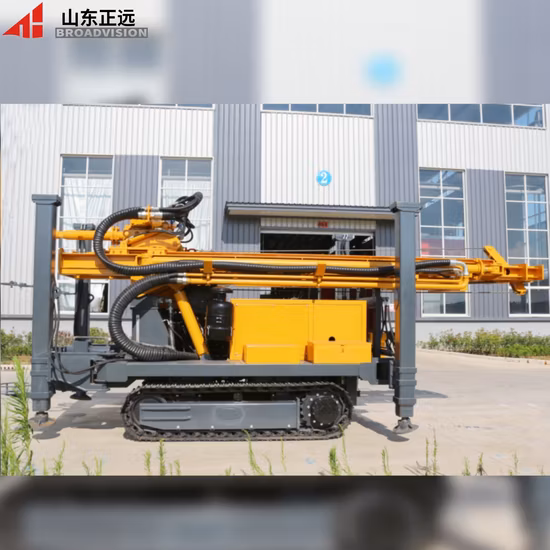

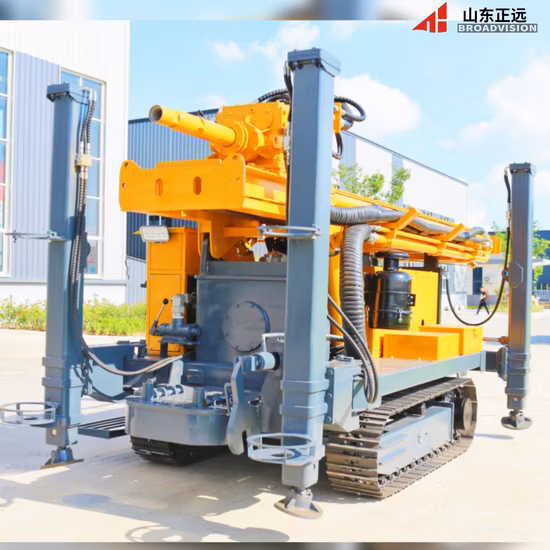

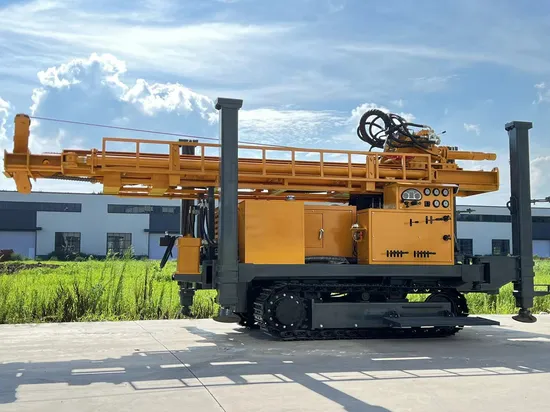

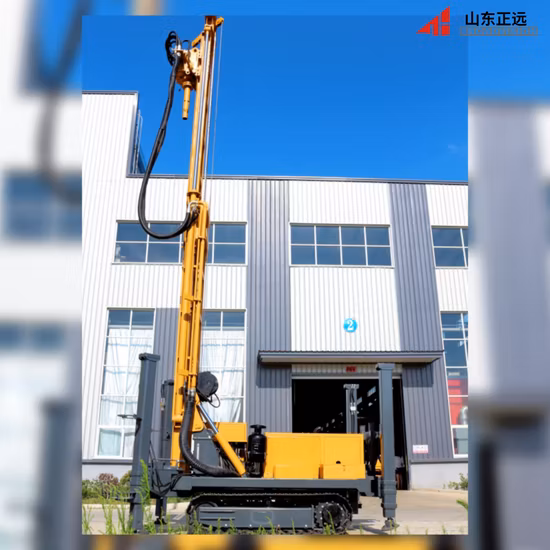

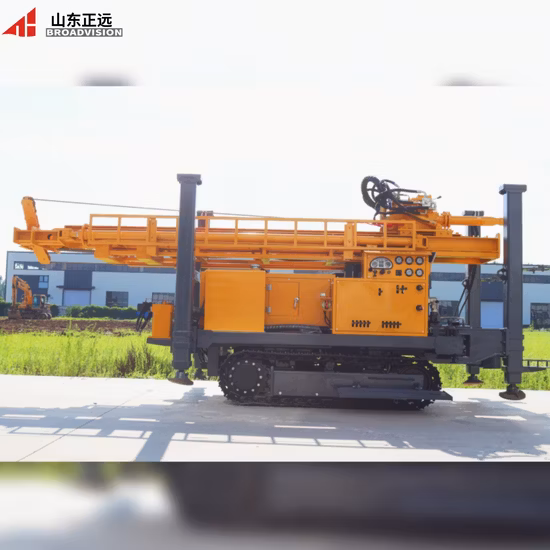

Detailed Photos


Small Portable Diesel Crawler Mobile Hydraulic Rotary Mine Rock Core DTH Diamond Bit Hammer Trailer Deep Borehole Ground Water Well Drill Machine Drilling Rig


Product Parameters

Machine weight4.5TDrill pipe diameter76, 89mm
Drilling hole diameter140-254mmDrill pipe length1.5m, 2.0m, 3.0m
Drilling depth180mRig liting force12T
One time advance length3.3mRapid rise speed20m/min
Traveling speed2.5km/hFast feeding speed40m/min
Climbing angles30 degreeLoading width3m
Hose machine power55kwSwing torque3200-4600N.m
Air pressure1.7-2.5MpaDimension3950x1630x2250mm
Air consumption17-31m3/minEquipped with hammerMedium and high wind pressure series
Penetration efficiency10-35m/hHigh leg stroke1.4m
Diesel engine brandQUANCHAI

Packaging & Shipping

Small Portable Diesel Crawler Mobile Hydraulic Rotary Mine Rock Core DTH Diamond Bit Hammer Trailer Deep Borehole Ground Water Well Drill Machine Drilling Rig

Company Profile

Jinan Duobo Intelligent Technology Co., Ltd. is a large-scale professional manufacturer of high, medium, and low wind pressure DTH drilling rigs and water well drilling rigs in Shandong Province. Products include more than 50 kinds of 6 series. The main products are KQZ series DTH drilling rigs, follow-up pipe series, FY series water well drilling rigs, high, medium, and low wind pressure engineering drilling rigs, etc.The company has been committed to the professional production of water well drilling rigs and down-the-hole drilling rigs and the sales and maintenance of drilling tools and air compressors for more than 20 years. Accumulated a wealth of professional maintenance technology and thoughtful and meticulous after-sales service experience. It has accumulated a large amount of usage data through extensive contacts with users.The company independently developed a new generation of water well drilling rigs and obtained a number of national patents. This series of products have the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economical and durability, and low failure rate. Once launched, it has been recognized by the market and is widely used in mining engineering construction, civil drilling, geothermal drilling, and other fields. The comprehensive cost performance of this series of products is leading and has won a good reputation in the market, becoming the first choice of users everywhere.The company always stands on the user's point of view, pays attention to user needs, implements quality standards, makes "Duobo" brand series drilling rigs closer to user needs, and forms the market management concept of "user needs, Duobo pursuit". The company always firmly believes that "the market is the only standard.
